Stroke 200mm 1000N 8 Inch Stroke Linear Actuator 12V High Load 220lbs Linear Motion Actuator, Electric Actuator 0.47"/s Heavy Duty with Mounting Bracket
Product details
| Management number | 211204579 | Release Date | 2026/04/04 | List Price | $12.80 | Model Number | 211204579 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The interior of the aircraft adopts powder metallurgy technology for a longer lifespan. How to select a push rod: 1: Confirm if the installation space is sufficient; 2: How long does it take to travel (retract range); 3: Choose the appropriate speed based on the weight of the object being pushed.

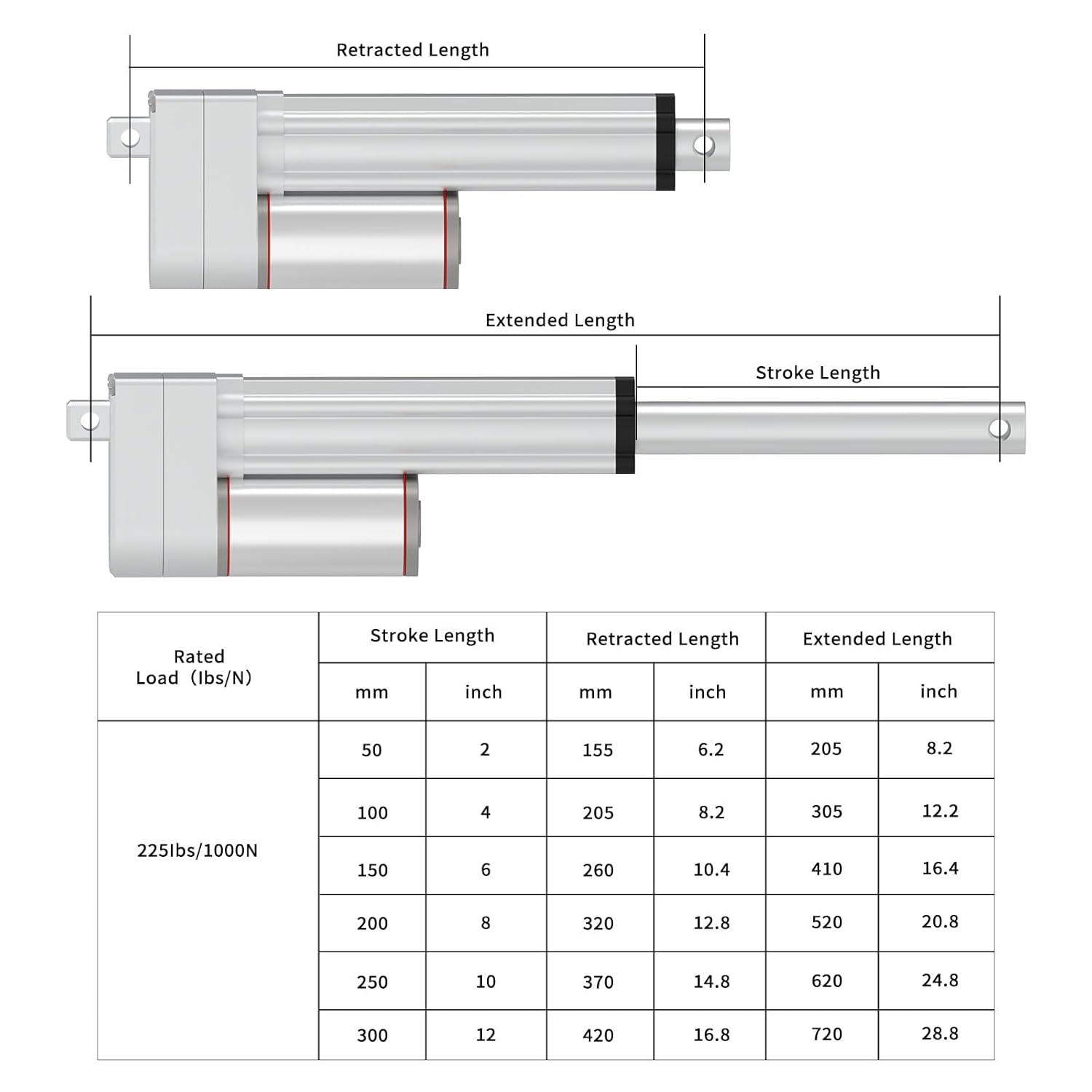

- 【Specification】: 12 Volt Stroke Linear Actuator Stroke length = 200mm(8"); Retracted length =320mm(12.8"); Extended Length= 520mm(20.8"); Travel speed =0.47 inches/sec (12 mm/s);Maximum current draw = 2.5Amps; Maximum Load = 220lbs(1000N).
- 【Durable and Sturdy】 Made of high quality aluminum alloy premium material and craft, reliable, sturdy and durable.
- 【Low Noise Design】The Linear Actuator equip with low noise motor, the noise level below 50 dB, This makes it suitable for use in hospitals, massage centers, and other noise-sensitive environments.
- 【Waterproof】IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use.
- 【Wide Application】Commonly Used in Automotive, home furniture, medical devices, industrial construction and agricultural machinery area, like massage recliners, electric wheelchairs, hospital hydraulic beds, massage tables, electric sofa and so on
| Item Weight | 2.86 pounds |
|---|---|
| Manufacturer | RRTECHFORU |
| Package Dimensions | 16.57 x 4.92 x 3.11 inches |
